What is inside a Lithium-Ion Battery?

Lithium-ion batteries have become the cornerstone of modern technology, powering everything from smartphones and laptops to electric vehicles and renewable energy storage systems. As essential as they are to our daily lives, few people truly understand what goes on inside these small yet powerful energy storage devices. So, what exactly is inside a lithium-ion battery? How do these components work together to store and release energy? In this guide, we’ll break down the inner workings of a lithium-ion battery, exploring the key components that make them so efficient, as well as how they function to power our favorite devices. By the end, you’ll have a clearer understanding of how these batteries operate and why they continue to be the preferred choice for many technological applications.

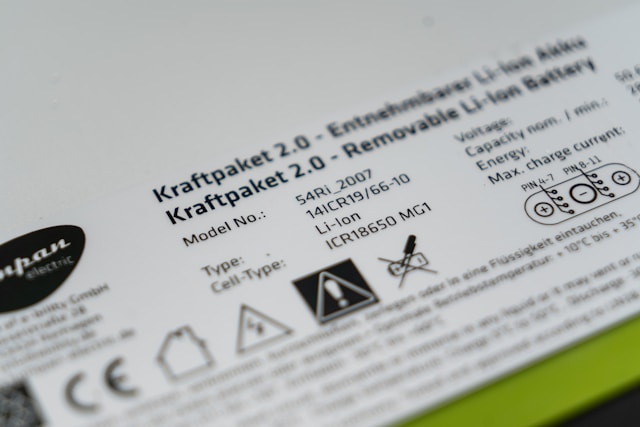

Basic Structure of a Lithium-Ion Battery

Lithium-ion batteries are composed of several key components that work together to store and release electrical energy. Understanding the basic structure is crucial for comprehending how these batteries function in everyday devices like smartphones, laptops, and electric vehicles. The main components of a lithium-ion battery include the anode, cathode, electrolyte, separator, and current collectors.

Anode

The anode is one of the two electrodes in a lithium-ion battery. It typically consists of a material that can easily absorb and release lithium ions. In most lithium-ion batteries, the anode is made of graphite, though other materials, such as silicon or lithium titanate, are being explored for improved performance. During the discharge cycle, lithium ions move from the anode to the cathode through the electrolyte. When the battery is being charged, lithium ions flow back to the anode. The anode plays a crucial role in storing energy and facilitating the battery’s charge and discharge cycles.

Cathode

The cathode is the positive electrode of the battery and is usually made from lithium-based metal oxide compounds. Common materials for the cathode include lithium cobalt oxide (LiCoO2), lithium iron phosphate (LiFePO4), and nickel manganese cobalt (NMC). These materials are selected for their ability to release and accept lithium ions efficiently. During discharging, lithium ions move from the anode and are stored in the cathode. The cathode’s performance and material choice significantly impact the battery’s energy density, voltage, and overall efficiency.

Electrolyte

The electrolyte in a lithium-ion battery is a medium that allows lithium ions to flow between the anode and cathode. It is usually a lithium salt (such as lithium hexafluorophosphate, LiPF6) dissolved in an organic solvent (like ethylene carbonate or dimethyl carbonate). The electrolyte is essential for facilitating the movement of lithium ions during both the charging and discharging processes. Without the electrolyte, the ions would be unable to travel through the battery, preventing energy storage and release. The electrolyte is carefully formulated to ensure the battery operates at optimal temperatures and voltages.

Separator

The separator is a thin, porous membrane that sits between the anode and cathode to prevent direct contact between the two electrodes. Direct contact could cause a short circuit, leading to battery failure or even a dangerous thermal runaway. The separator allows the movement of lithium ions between the electrodes, ensuring proper ion flow while keeping the two electrodes apart. Typically, the separator is made from a polymer material like polyethylene or polypropylene, which is chosen for its stability and ability to resist thermal degradation.

Current Collectors

The current collectors are thin layers of conductive material, typically made of copper for the anode and aluminum for the cathode. They serve as the interface between the battery’s electrodes and the external circuit. The current collectors are responsible for conducting electrons to and from the battery during charging and discharging. In the process of discharging, electrons flow from the anode to the external circuit, powering devices. When charging, electrons flow from the external circuit to the anode. The material used for current collectors must be lightweight, corrosion-resistant, and efficient in conducting electricity to minimize energy losses.

Detailed Breakdown of the Components

In this section, we will delve deeper into the individual components of a lithium-ion battery to better understand how they contribute to its performance and function. These components are the building blocks of the battery, each playing a vital role in ensuring efficient energy storage and release.

Anode: The Negative Electrode

The anode is one of the two electrodes in a lithium-ion battery and plays a crucial role in storing energy. Typically, the anode is made of graphite, a form of carbon that can intercalate (absorb and release) lithium ions efficiently. During discharge, when the battery is powering a device, lithium ions move from the anode to the cathode through the electrolyte. When the battery is charging, lithium ions move back to the anode from the cathode.

Graphite is used primarily because of its high electrochemical stability, which allows it to endure many charge-discharge cycles without significant degradation. However, graphite has a limited capacity for storing lithium ions, so researchers are exploring other materials, such as silicon or lithium titanate, which have higher energy densities but present their own challenges, such as volume expansion during charging.

Cathode: The Positive Electrode

The cathode is the positive electrode in the lithium-ion battery, and it plays a critical role in energy storage and release. The cathode material is typically a lithium metal oxide compound, which is designed to accept lithium ions during the charging process and release them during discharging.

Common materials used for the cathode include:

Lithium Cobalt Oxide (LiCoO2): Known for its high energy density, it is commonly used in consumer electronics such as smartphones and laptops.
Lithium Iron Phosphate (LiFePO4): Known for its safety and thermal stability, it is used in electric vehicles and large-scale energy storage applications.
Nickel Manganese Cobalt (NMC): This material offers a balance between energy density, stability, and cost, making it popular in electric vehicle batteries.

The material choice for the cathode influences not only the battery’s energy capacity but also factors such as cycle life, thermal stability, and overall safety. As with the anode, ongoing research focuses on improving cathode materials to enhance energy density and longevity.

Electrolyte: The Ion Conductor

The electrolyte in a lithium-ion battery is a critical component that facilitates the movement of lithium ions between the anode and cathode. The electrolyte is typically made from a lithium salt dissolved in an organic solvent. The salt, commonly lithium hexafluorophosphate (LiPF6), is dissolved in a mixture of solvents such as ethylene carbonate (EC) and dimethyl carbonate (DMC).

The electrolyte’s primary role is to provide a medium for the free flow of lithium ions between the electrodes while preventing the flow of electrons. The movement of ions through the electrolyte is what allows the battery to store energy during charging and release it during discharging. Because of this, the electrolyte must remain stable within the battery’s operating voltage range and be able to function efficiently under a range of temperatures.

Electrolyte composition is one of the key factors that determines a lithium-ion battery’s overall performance. Advances in electrolyte technology, such as the development of solid-state electrolytes, aim to improve the efficiency and safety of lithium-ion batteries.

Separator: The Safety Barrier

The separator is a critical component in ensuring the safe operation of a lithium-ion battery. This thin, porous membrane is placed between the anode and cathode to prevent them from touching directly, which could result in a short circuit and potentially cause a fire or explosion. At the same time, the separator allows lithium ions to pass freely between the anode and cathode during charge and discharge cycles.

The separator is typically made of a polymer material such as polyethylene (PE) or polypropylene (PP), which is chemically stable and resistant to high temperatures. The material must also have good mechanical strength to prevent any deformation that could lead to internal short circuits. The separator’s permeability is carefully designed to balance ion flow and safety, ensuring efficient battery performance without compromising safety.

Current Collectors: The Electrical Conductors

The current collectors in a lithium-ion battery are responsible for conducting electrons between the battery’s electrodes and the external circuit. These components are typically thin layers of conductive metal: copper is used for the anode, while aluminum is used for the cathode. The current collectors are attached to the electrodes and extend out to connect with the battery’s external terminals.

During the discharge cycle, electrons flow from the anode, through the external circuit, to the cathode. During charging, the reverse happens, with electrons flowing from the external circuit to the anode. The current collectors ensure that this electron flow is efficient, minimizing any losses due to resistance. They must be lightweight, corrosion-resistant, and conduct electricity effectively to maintain the battery’s efficiency.

How a Lithium-Ion Battery Works?

A lithium-ion battery works by harnessing the movement of lithium ions between two electrodes—the anode and cathode—through an electrolyte. During this process, energy is stored when the battery is charged and released when the battery is discharged. The movement of lithium ions and electrons, which flows through the external circuit, is what powers devices like smartphones, laptops, and electric vehicles.

The Charging Process

When you plug in your lithium-ion battery to charge it, an external power source applies voltage to the battery. This voltage causes the lithium ions to move from the cathode (the positive electrode) to the anode (the negative electrode).

At the cathode, which is typically made of lithium metal oxide, the lithium ions are released into the electrolyte. As the voltage is applied, electrons are pushed through the external circuit, from the cathode to the anode. The movement of electrons through the external circuit is what powers your device. Meanwhile, lithium ions travel through the electrolyte, moving from the cathode to the anode.

When the lithium ions reach the anode, they are intercalated into the graphite (or other anode material) structure. The anode, which has a large surface area, can absorb and store the lithium ions, allowing the battery to retain energy. The charging process continues until the battery reaches its full charge, at which point the voltage is no longer supplied, and the battery is fully loaded with energy.

The Discharging Process

When you use a device that is powered by a lithium-ion battery, the discharging process begins. During discharge, the battery provides power by releasing the energy stored in the anode and converting it into usable electricity.

As the battery discharges, the lithium ions stored in the anode are released back into the electrolyte and move toward the cathode. The ions pass through the electrolyte, which is a lithium salt solution, and enter the cathode. At the same time, electrons flow through the external circuit from the anode to the cathode. These electrons power the device, such as a phone or laptop.

In the cathode, the lithium ions combine with the electrons that have traveled through the external circuit, allowing the battery to deliver its electrical energy to the device. The flow of lithium ions from the anode to the cathode generates an electric current, which powers the device. Over time, as the lithium ions move back to the cathode, the battery’s stored energy decreases, and the battery needs to be recharged.

Role of the Electrolyte

The electrolyte plays an essential role in both the charging and discharging processes of the lithium-ion battery. It is the medium that facilitates the movement of lithium ions between the anode and cathode. Without the electrolyte, the lithium ions would not be able to travel from one electrode to the other, halting the energy storage and release process.

The electrolyte in lithium-ion batteries is typically a lithium salt dissolved in an organic solvent. During charging, the electrolyte allows lithium ions to migrate from the cathode to the anode. During discharging, the ions flow in the reverse direction, from the anode to the cathode, providing the necessary ion flow for energy conversion. The electrolyte must remain stable under the battery’s voltage range and be able to conduct ions without reacting with the electrodes or causing degradation of the battery components.

The Role of the Separator

While the electrolyte ensures the movement of lithium ions between the anode and cathode, the separator serves as an essential barrier that prevents direct contact between the two electrodes. This is crucial because direct contact between the anode and cathode could lead to a short circuit, which could cause the battery to overheat or even catch fire.

The separator is a thin, porous membrane that is chemically stable and allows the lithium ions to pass through while keeping the anode and cathode apart. Made from polymer materials such as polyethylene or polypropylene, the separator’s primary function is to maintain the integrity of the battery during charging and discharging cycles, ensuring that the battery functions safely and efficiently.

The Flow of Electrons: External Circuit

The flow of electrons in the external circuit is what powers your devices. During the charging process, electrons are pushed from the cathode to the anode through the external circuit, from the positive to the negative side. This flow of electrons is what provides the current to charge the battery. Conversely, during the discharging process, the electrons flow from the anode back to the cathode through the external circuit, delivering power to the device.

This electron flow is crucial for the operation of the battery. In fact, the electrons that flow through the external circuit provide the electrical energy that powers your phone, laptop, or electric vehicle. The battery itself only handles the movement of ions within the electrolyte, while the actual electrical current is carried by the electrons through the external circuit.
